Description

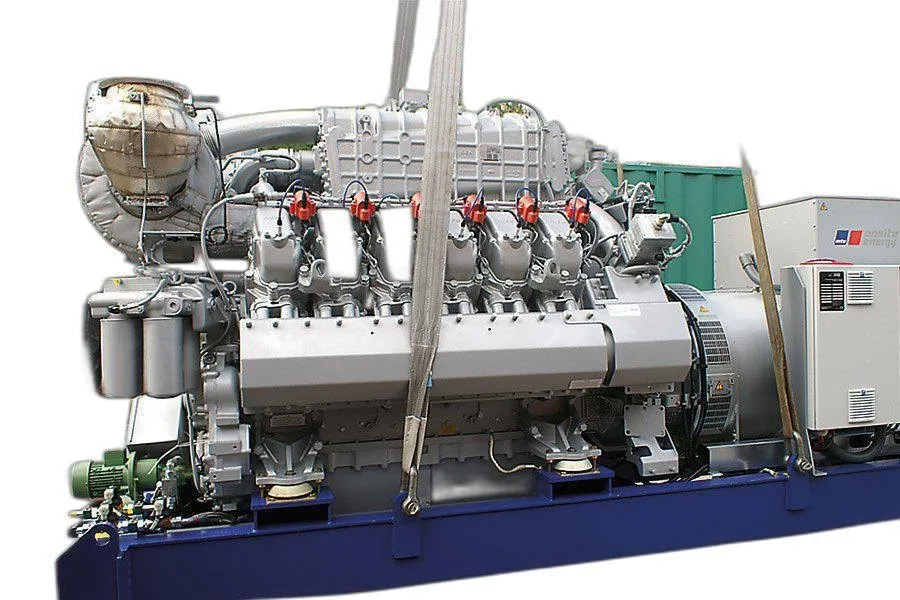

GENERATOR SET SPECIFICATIONS
Model： FM-500GFZ
Frequency: 50Hz /60Hz
Rated power: 500KW/625KVA
Weight：11500kg
Size：6000*1970*2735mm
ENGINE：
Engine Model: 12V190ZLDT-2
No. Of Cylinder: 12-V
Bore *stroke:190*210mm
Aspiration model: Supercharging, inter cooled
Ignition method: plug ignition
Gas pressure:3~20Kpa
Start motor: 24V
ALTERNATOR：Liuzhou Siemens
Exciter type: Brushless, self-excited
OUtput model: 3H4W
Insulation grade: H
Protection grade: IP23
Optional brand: Marathon, Engel , Stanford
voltage control model: AVR
Controller: Smartgen
Model:HGM6110
Protective functions:
Low oil pressure
High water temperature
High/low voltage
High Engine Temperature and Overspeed
Voltage regulator frequency regulator
Emergency stop
Start failure
Optional brands: Deepsea, ComAp.
