Description

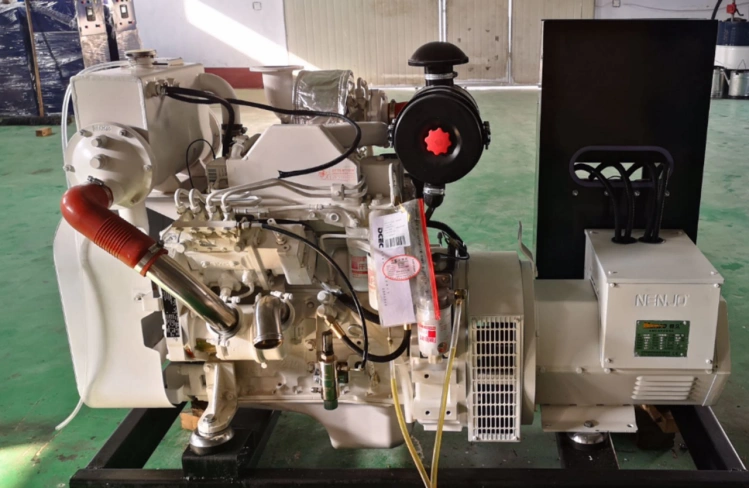

GENERATOR SET SPECIFICATIONS
Model： FM-40GF
Frequency: 50Hz
Prime Power (kW/kVA): 40/50
Standby Power (kW/kVA): 44/55
Weight：750kg
Size：1700*830*1300mm
ENGINE：
Powered by: Cummins
Engine Model: 4BT3.9-GM47
Bore *stroke:102*120mm
Type: 4 cylinder in line
Consumption: ≤219g/kW·h
Displacement: 3.9L
Start motor: 24V
ALTERNATOR：
Exciter type: Brushless, self-excited
Insulation grade: H
Protection grade: IP23
Controller-Smartgen
Model :Smartgen 6110
Protective functions:
Low oil pressure
High water temperature
High/low voltage
High Engine Temperature and Overspeed
Voltage regulator frequency regulator
Emergency stop
Start failure
