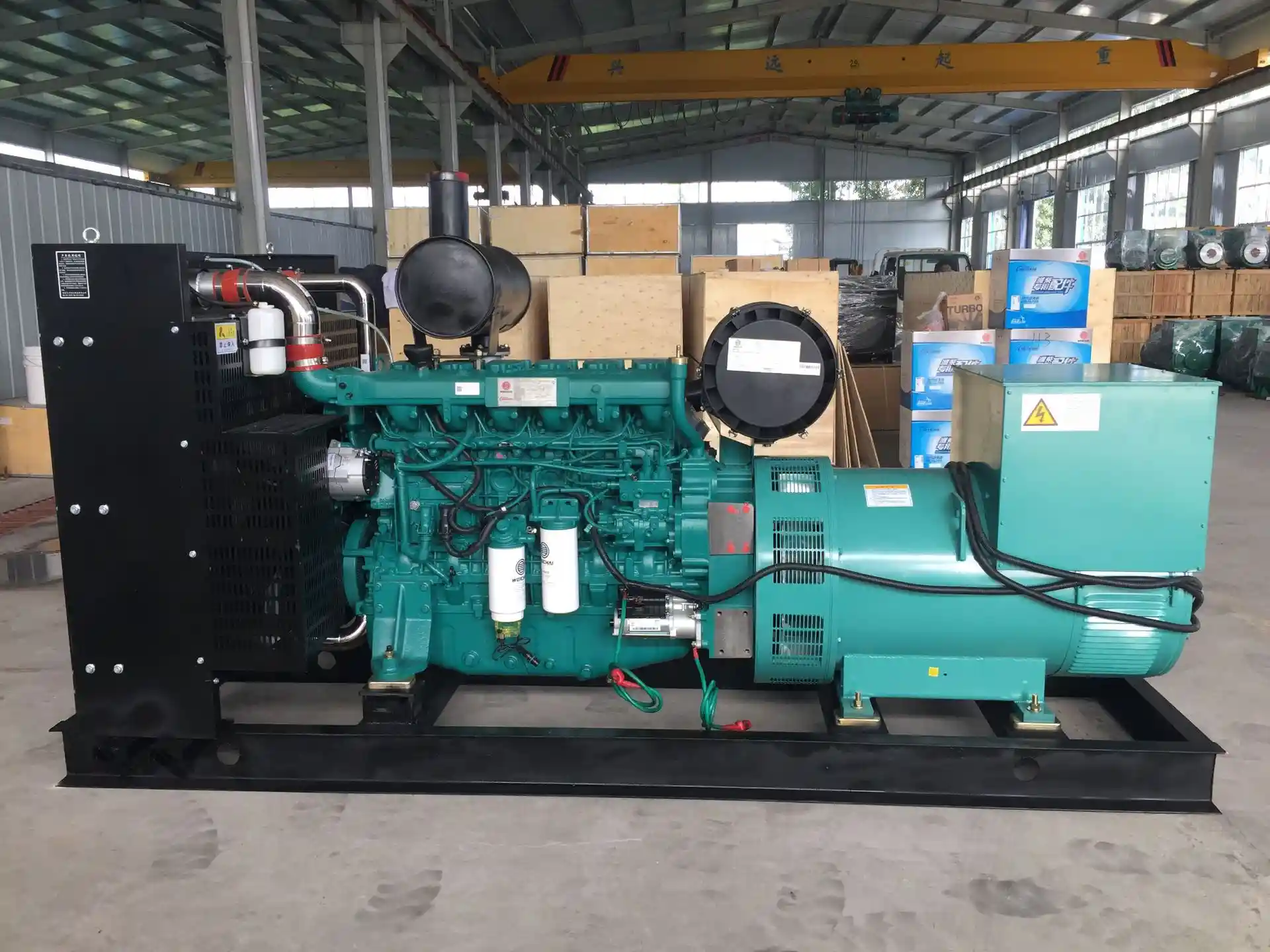

GENERATOR SET SPECIFICATIONS
Model： FM-350GF
Frequency: 50Hz
Rated Power (kW/kVA): 350/438
Standby Power (kW/kVA): 385/480
Weight：4000kg
Size：3350*1150*1800mm
ENGINE：
Powered by: Weichai
Engine Model: WP13D440E310
Bore *stroke:127*165mm
Type: 6 cylinder in line
Consumption: ≤205g/kW·h
Displacement: 12.54L
Start motor: 24V
ALTERNATOR：STAMFORD
Model：HCI544C-S4L1D-G41
Exciter type: Brushless, self-excited
Insulation grade: H
Protection grade: IP23
Controller- Deepsea
Model : DSE6120MK3
Protective functions:
Low oil pressure
High water temperature
High/low voltage
High Engine Temperature and Overspeed
Voltage regulator frequency regulator
Emergency stop
Start failure
