Description

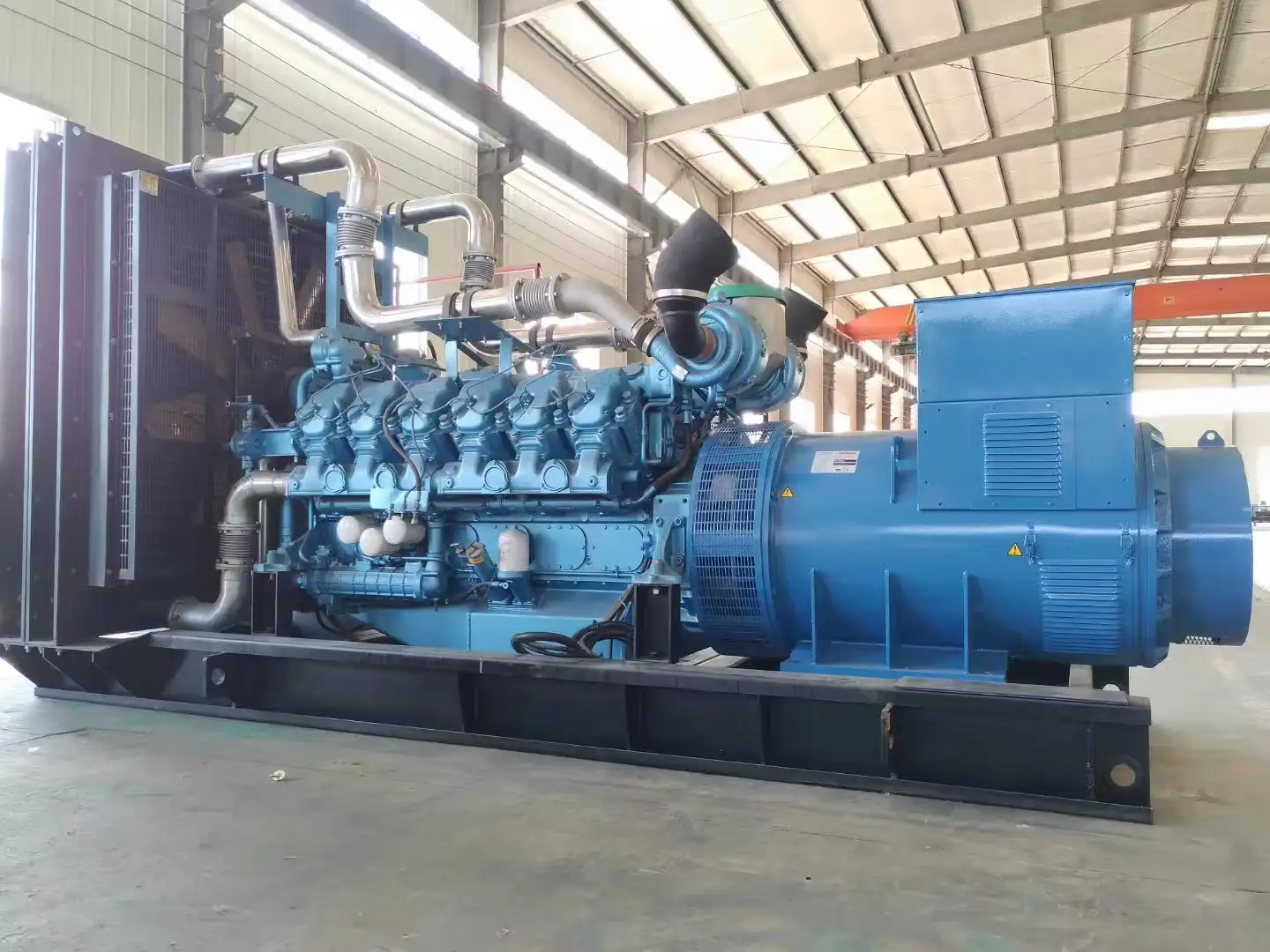

GENERATOR SET SPECIFICATIONS
Model： FM-300GFT
Frequency: 50Hz /60Hz
Rated power: 300KW/375KVA
Weight：3600kg
Size：3600*1700*2100mm
ENGINE：
Engine Model: HC12V132G(Deutz)
No. Of Cylinder: 12-V
Bore *stroke:135*145mm
Aspiration model: Supercharging, inter cooled
Ignition method: plug ignition
Gas pressure:8~200Kpa
Start motor: 24V
ALTERNATOR：Hengjiu
Exciter type: Brushless, self-excited
OUtput model: 3H4W
Insulation grade: H
Protection grade: IP23
Optional brand: Marathon, Engel , Stanford
voltage control model: AVR
Controller: Smartgen
Model:HGM6110
Protective functions:
Low oil pressure
High water temperature
High/low voltage
High Engine Temperature and Overspeed
Voltage regulator frequency regulator
Emergency stop
Start failure
Optional brands: Deepsea, ComAp.
