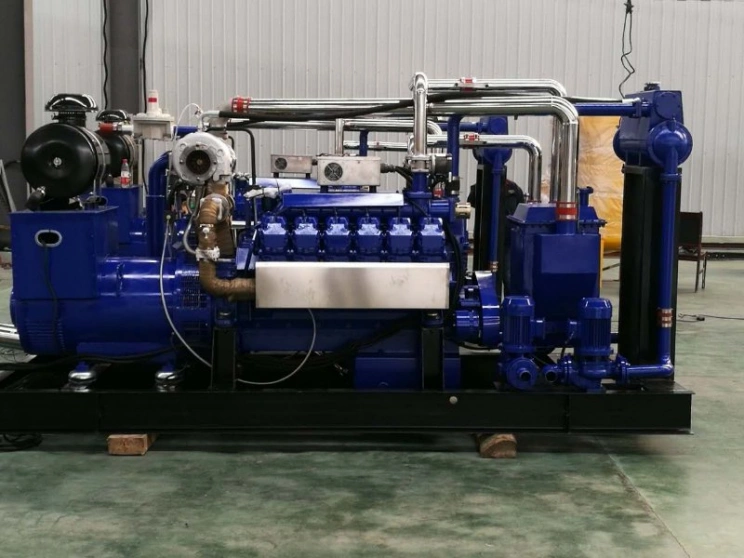

300kw biogas generator

GENERATOR SET SPECIFICATIONS

Model: FM-300GFZ

Frequency: 50Hz /60Hz

Rated power: 300KW/375KVA

Weight:2750kg

Size:3800*1550*1950mm

Description

GENERATOR SET SPECIFICATIONS

Model: FM-300GFZ

Frequency: 50Hz /60Hz

Rated power: 300KW/375KVA

Weight:2750kg

Size:3800*1550*1950mm



ENGINE

Engine Model: HC12V400ZQ(Deutz)

No. Of Cylinder: 12-V

Bore *stroke:132*145mm

Aspiration model: Supercharging, inter cooled

Ignition method: plug ignition

Gas pressure:3~20Kpa

Start motor: 24V



ALTERNATORHengjiu

Exciter type: Brushless, self-excited

OUtput model: 3H4W

Insulation grade: H

Protection grade: IP23

Optional brand: Marathon, Engel , Stanford

voltage control model: AVR



Controller: Smartgen

Model:HGM6110

Protective functions:

Low oil pressure

High water temperature

High/low voltage

High Engine Temperature and Overspeed

Voltage regulator frequency regulator

Emergency stop

Start failure

Optional brands: Deepsea, ComAp.
