Description

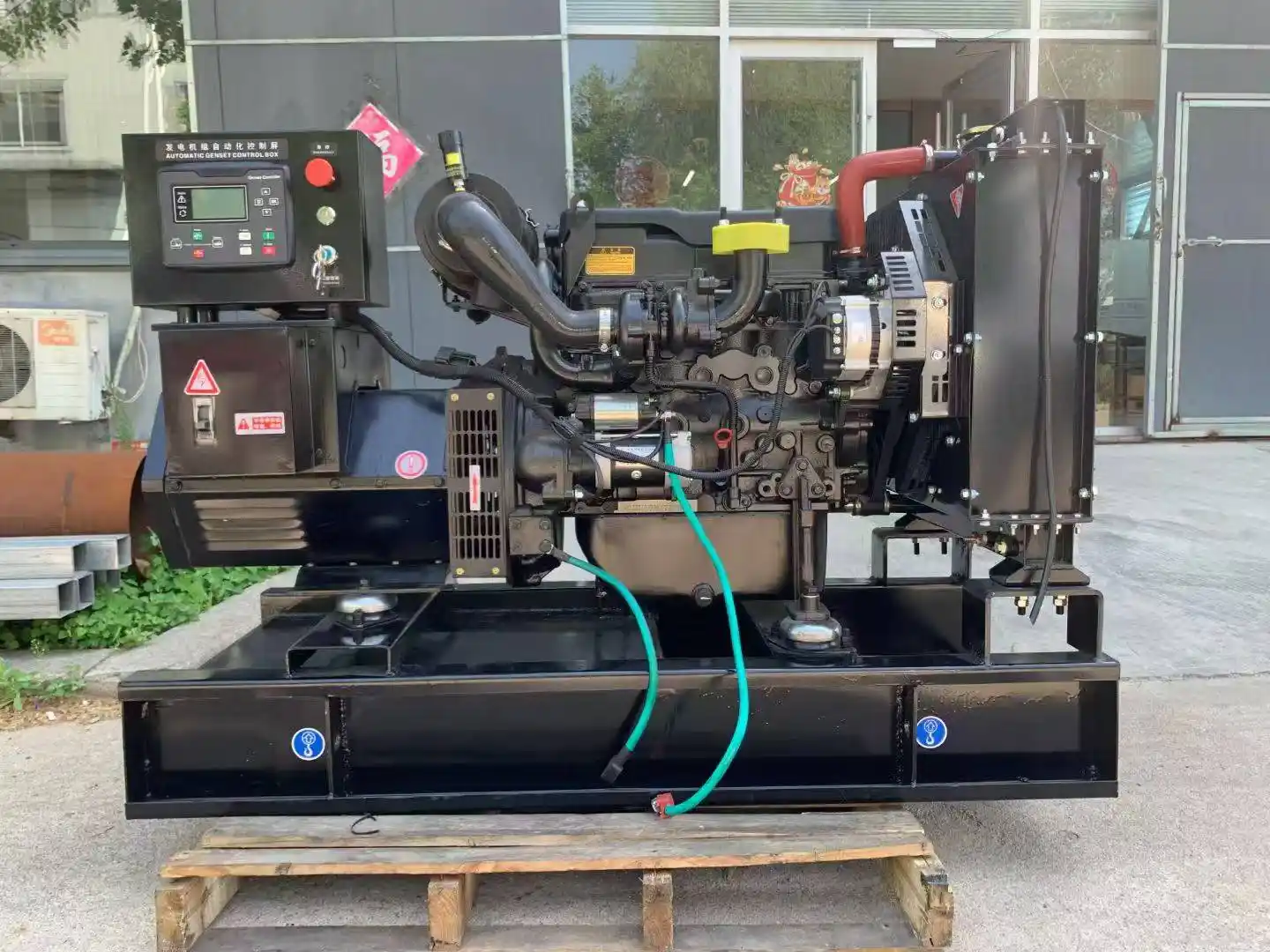

GENERATOR SET SPECIFICATIONS
Model： FM-25GF
Frequency: 50Hz
Prime Power (kW/kVA): 24/30
Standby Power (kW/kVA): 26.4/33
Weight：450kg
Size：1500*750*820mm
ENGINE：
Powered by: Weichai
Engine Model: WP2.3D33E200
Bore *stroke:89*92mm
Consumption: ≤205g/kW·h
Displacement: 2.3L
Start motor: 24V
ALTERNATOR：
Exciter type: Brushless, self-excited
Insulation grade: H
Protection grade: IP23
Controller-DEEPSEA
Model DSE6120MK3
Protective functions:
Low oil pressure
High water temperature
High/low voltage
High Engine Temperature and Overspeed
Voltage regulator frequency regulator
Emergency stop
Start failure
