Description
GENERATOR SET SPECIFICATIONS
Model： FM-20GFZ
Frequency: 50Hz /60Hz
Rated power: 20KW/25KVA
Weight：850kg
Size：1900*900*1500mm
ENGINE：
Engine Model: K4100Q
No. Of Cylinder: 4
Bore *stroke:105*125mm
Aspiration model: supercharging, inter cooled
Gas pressure:3~20Kpa
Start motor: 24V
ALTERNATOR：Hengjiu
Exciter type: Brushless, self-excited
OUtput model: 3H4W
Insulation grade: H
Protection grade: IP23
Optional brand: Marathon, Engel , Stanford
voltage control model: AVR

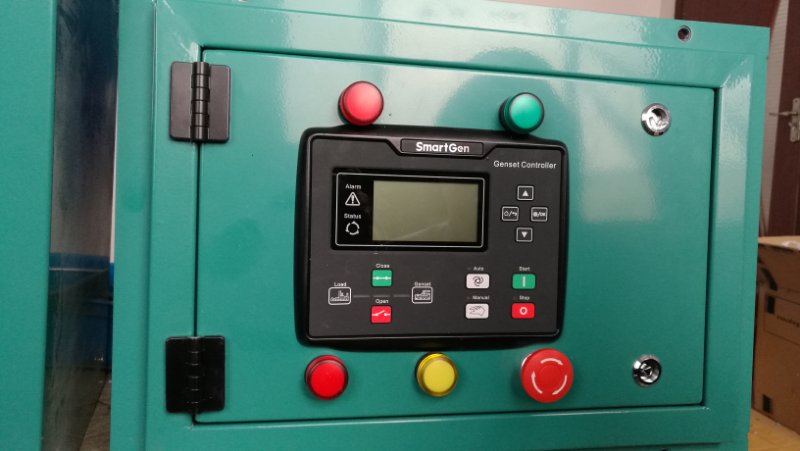

Controller: Smartgen
Model:HGM6110
Protective functions:
Low oil pressure
High water temperature
High/low voltage
High Engine Temperature and Overspeed
Voltage regulator frequency regulator
Emergency stop
Start failure
Optional brands: Deepsea, ComAp.
