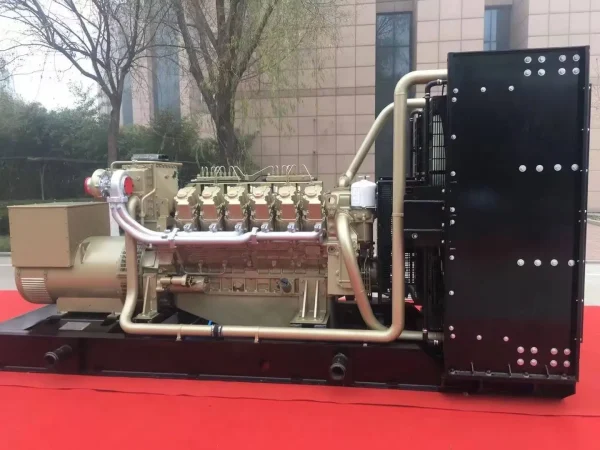

GENERATOR SET SPECIFICATIONS
Model： FM-1500GF
Frequency: 60Hz
Rated Power (kW/kVA): 1500/1875
Standby Power (kW/kVA): 1650/2063
Weight：8600kg
Size：4600*2200*2430mm

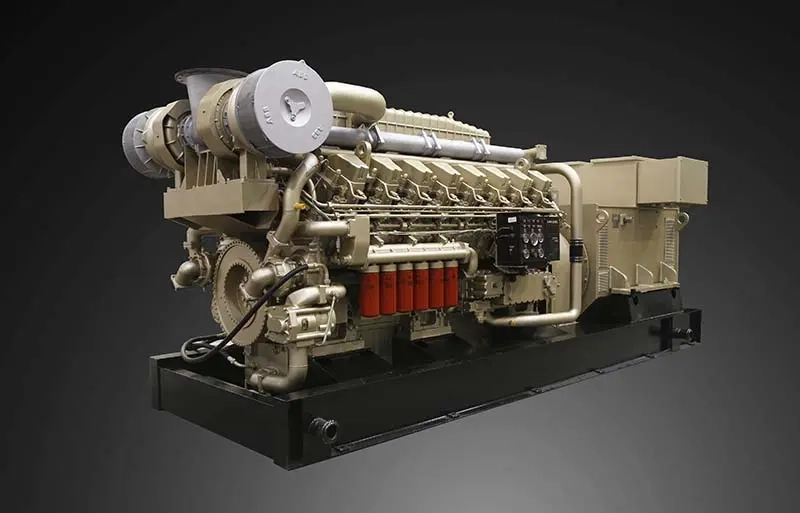

ENGINE：
Powered by: Jichai
Engine Model: AL12V200ZL-1
Bore *stroke:200*255mm
Type: 12 cylinder in V
Consumption: ≤203.6/kW·h
Displacement: 96.12L
Start motor: 24V
ALTERNATOR：(SIEMENS Technology)
Model：1FC series
Exciter type: Brushless, self-excited
Insulation grade: H
Protection grade: IP23
Controller- Deepsea
Model : DSE8610
Protective functions:
Low oil pressure
High water temperature
High/low voltage
High Engine Temperature and Overspeed
Voltage regulator frequency regulator
Emergency stop
Start failure
