Description

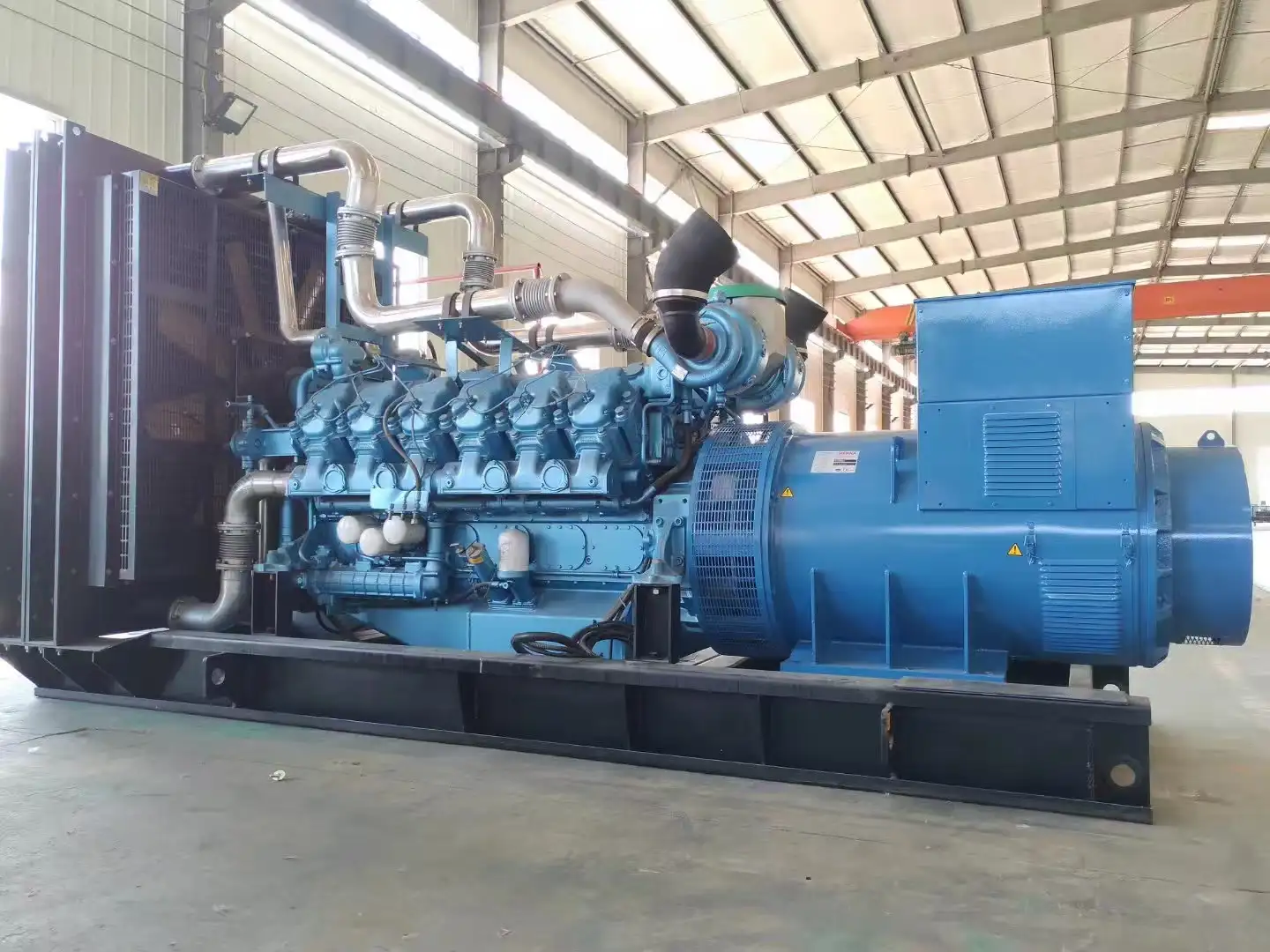

GENERATOR SET SPECIFICATIONS
Model： FM-1000GF
Frequency: 60Hz
Rated Power (kW/kVA): 1000/1250
Standby Power (kW/kVA): 1100/1375
Weight：8600kg
Size：4600*2200*2430mm
ENGINE：
Powered by: Weichai
Engine Model: Baudouin12M33D1265E201
Bore *stroke:150*185mm
Type: 12 cylinder in V
Consumption: ≤203.6/kW·h
Displacement: 39.2L
Start motor: 24V
ALTERNATOR：STAMFORD
Model：S6LD1-F4
Exciter type: Brushless, self-excited
Insulation grade: H
Protection grade: IP23
Controller- Deepsea
Model : DSE8610
Protective functions:
Low oil pressure
High water temperature
High/low voltage
High Engine Temperature and Overspeed
Voltage regulator frequency regulator
Emergency stop
Start failure
